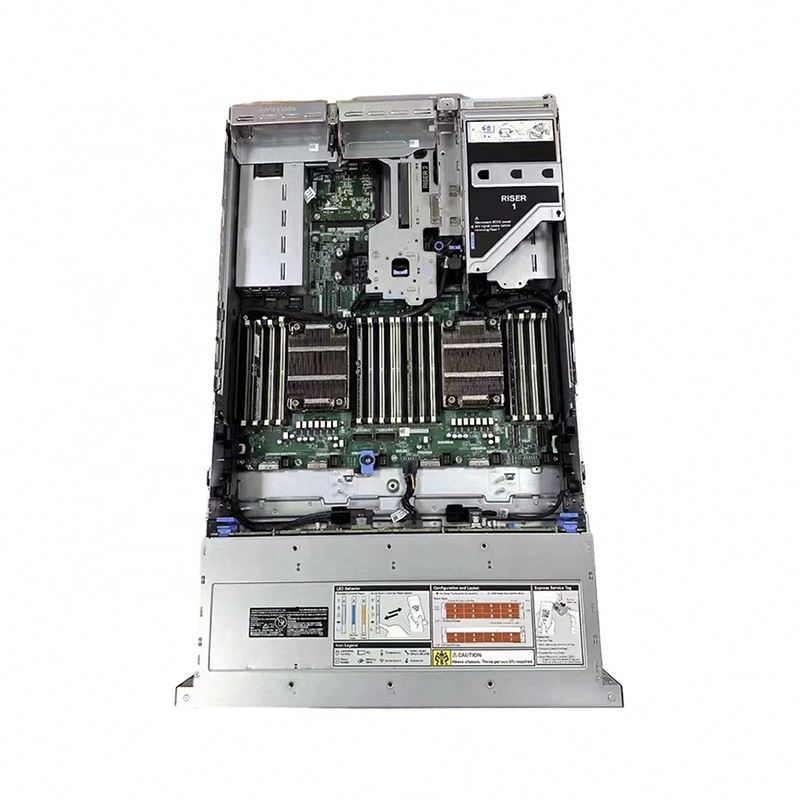

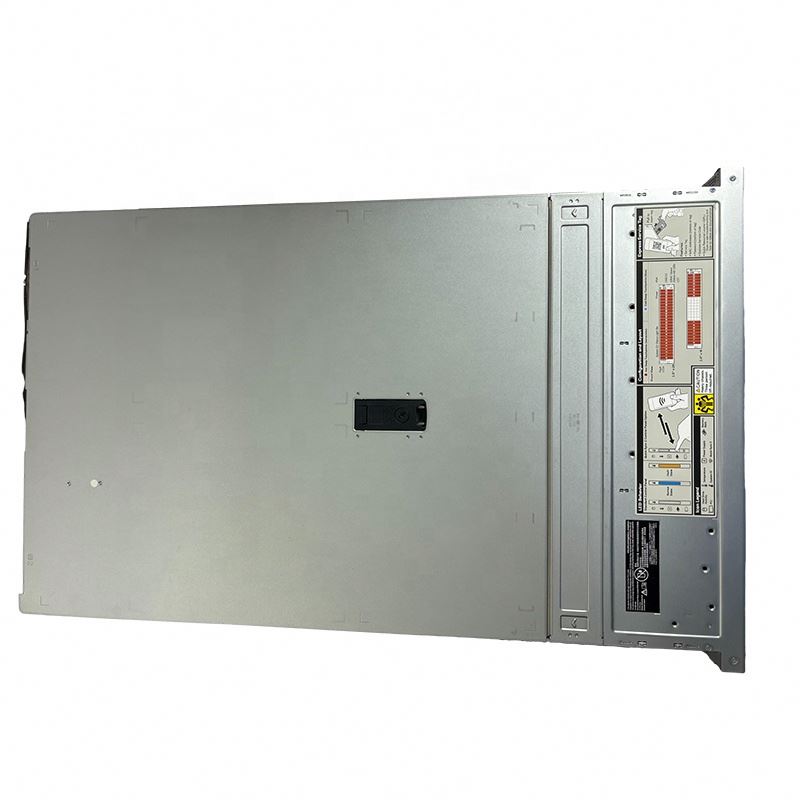

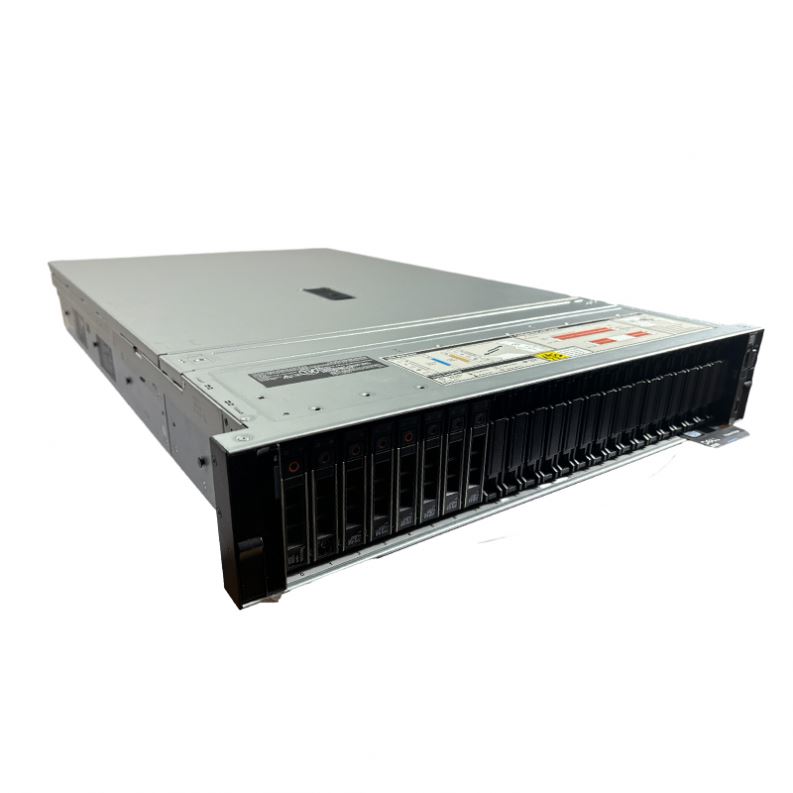

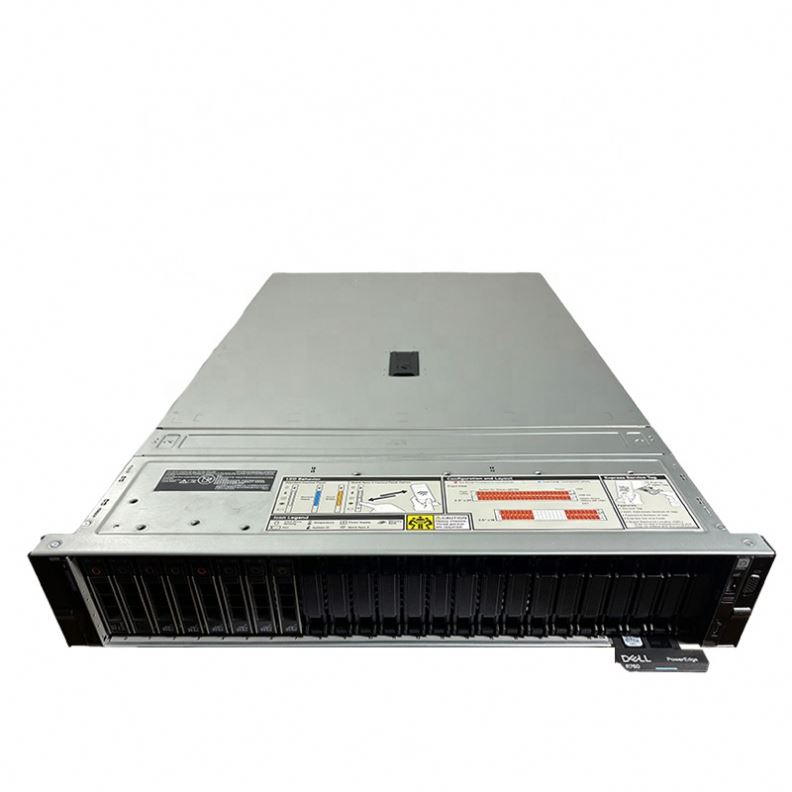

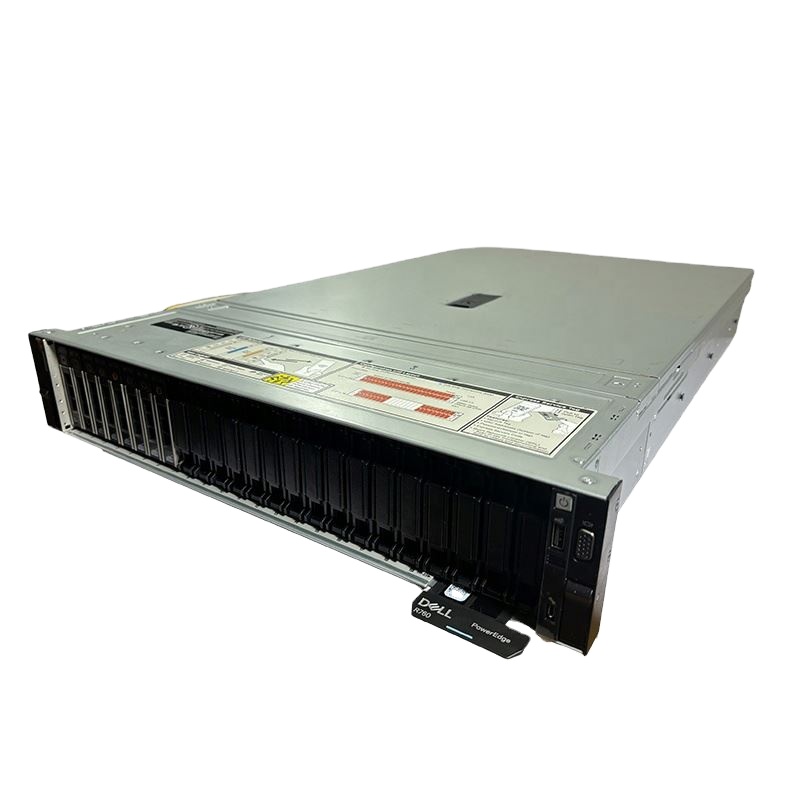

| Server Model | Dell Poweredge R760 Server |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
| Memory |
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers |
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays |
Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power supplies |
• 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant • 1800W Titanium 200-240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 - -60 VDC, hot swap redundant • 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant |
| Cooling Options |
Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate |
| Fans |
• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans |
| Dimensions |
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel |
| Bezel | Optional LCD bezel or security bezel |
| Open Manage Integrations |
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1 GbE LOM card (optional) |
| Network options | 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
| GPU Options | Up to 2 x 350 W DW and 6 x 75 W SW |
| Warranty | 3 years |
