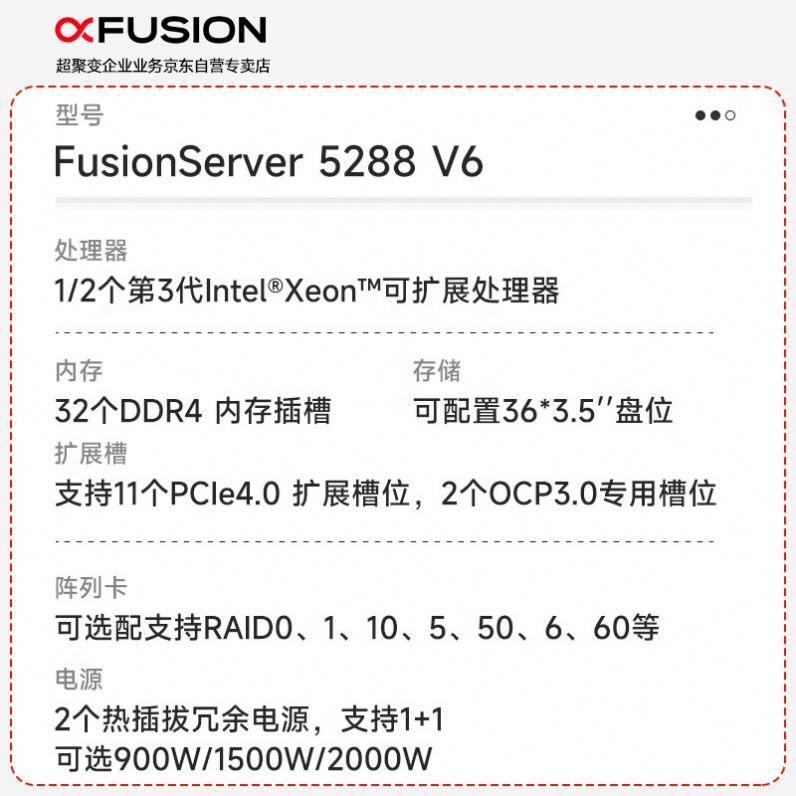

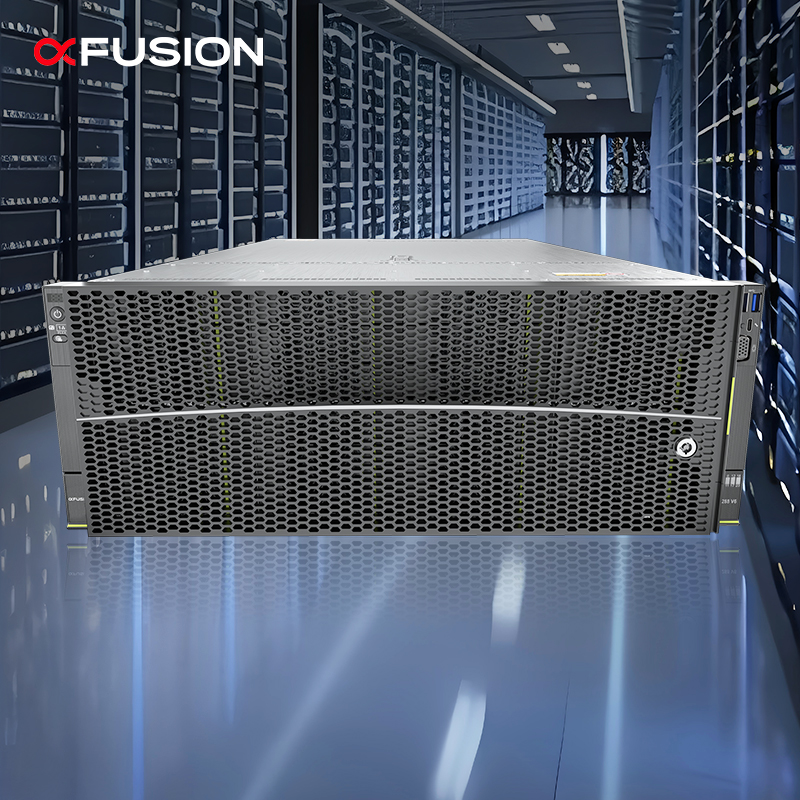

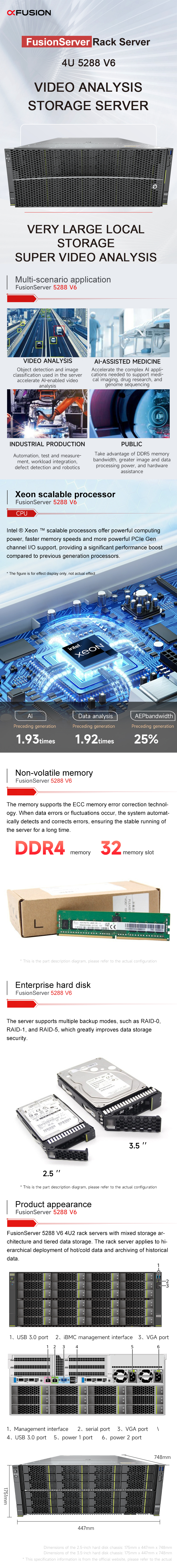

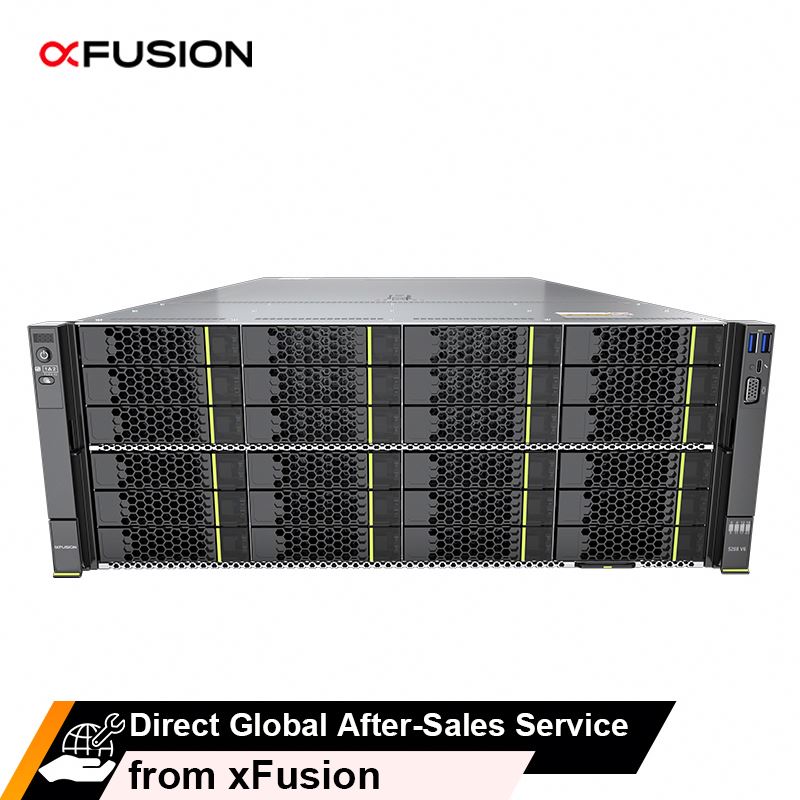

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series), up to 270W |
| Local Storage | Various hard disk configurations are supported. The hard disks are hot swappable: • 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs • 24 x 3.5-inch SAS/SATA front hard disks • 4 3.5-inch SAS/SATA internal hard disks • 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks • 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe) Flash storage: • Dual M.2 SSDs |

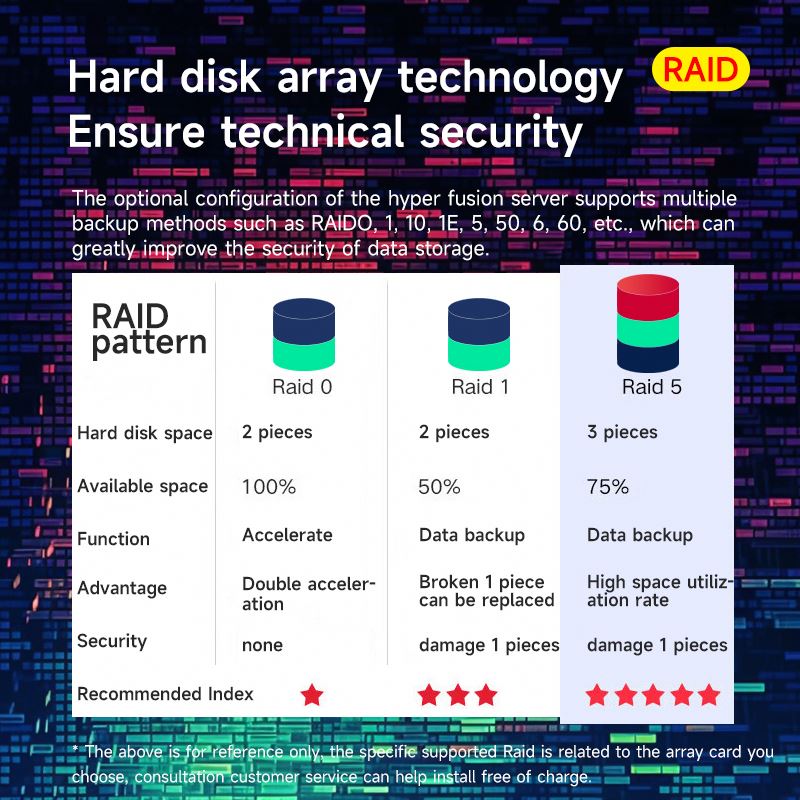

| RAID Support | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities |
| Network | OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap |
| PCIe Expansion | A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy |
| Height X Width X Depth | Chassis dimensions: 175 mm x 447 mm x 790 mm |
| Power Supply Units | 2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows: • 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC) • 1500 W AC Platinum PSU • 1000 W (input: 100 V AC to 127 V AC) • 1500 W (input: 200–240 V AC or 192–288 V DC) • 2000 W AC Platinum PSU • 1800 W (input: 200–220 V AC or 192–200 V DC) • 2000 W (input: 220–240 V AC or 200–288 V DC) |
