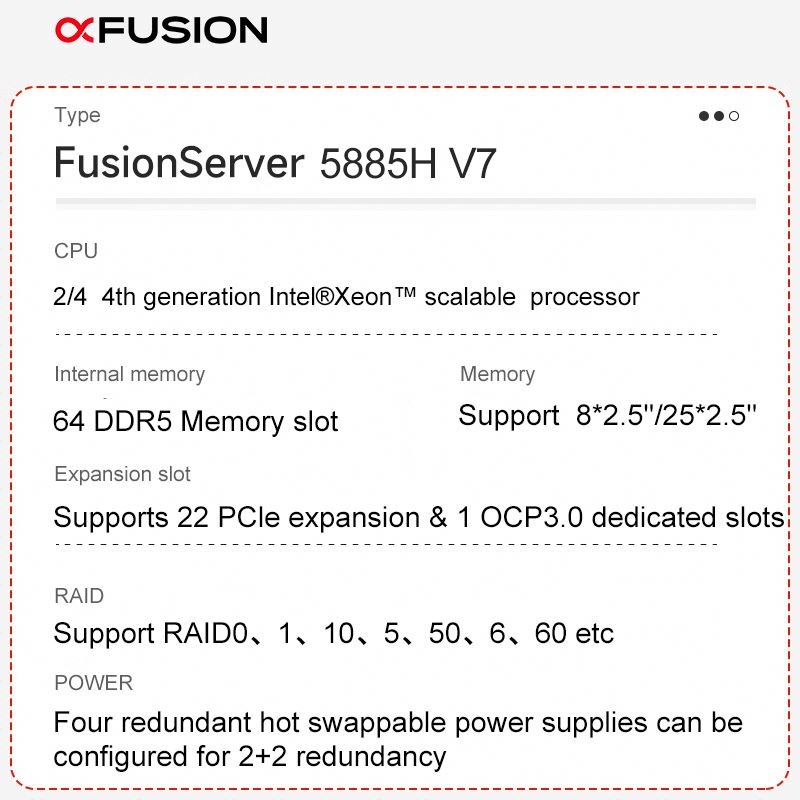

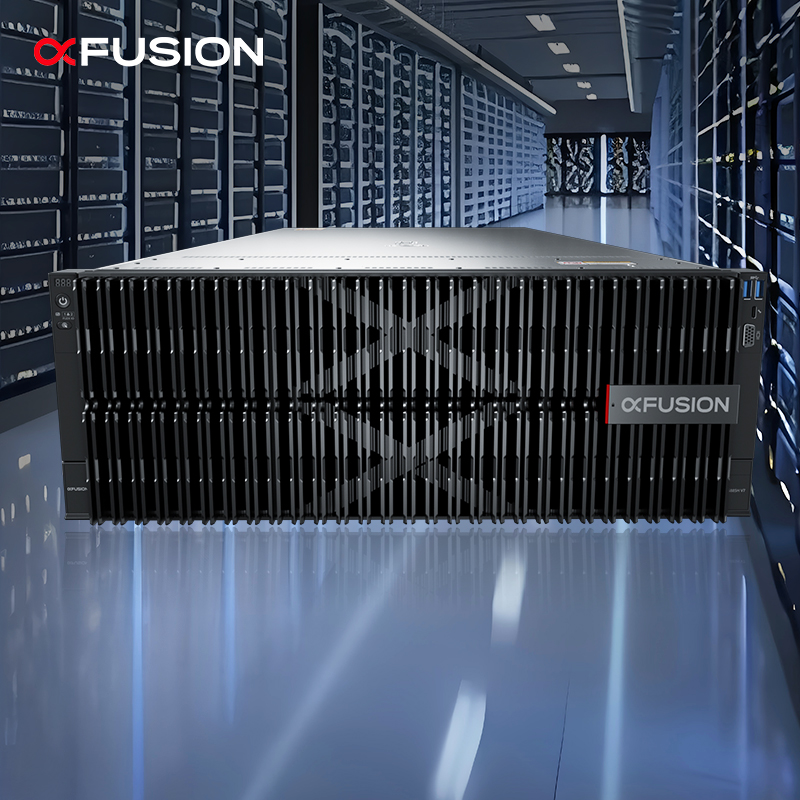

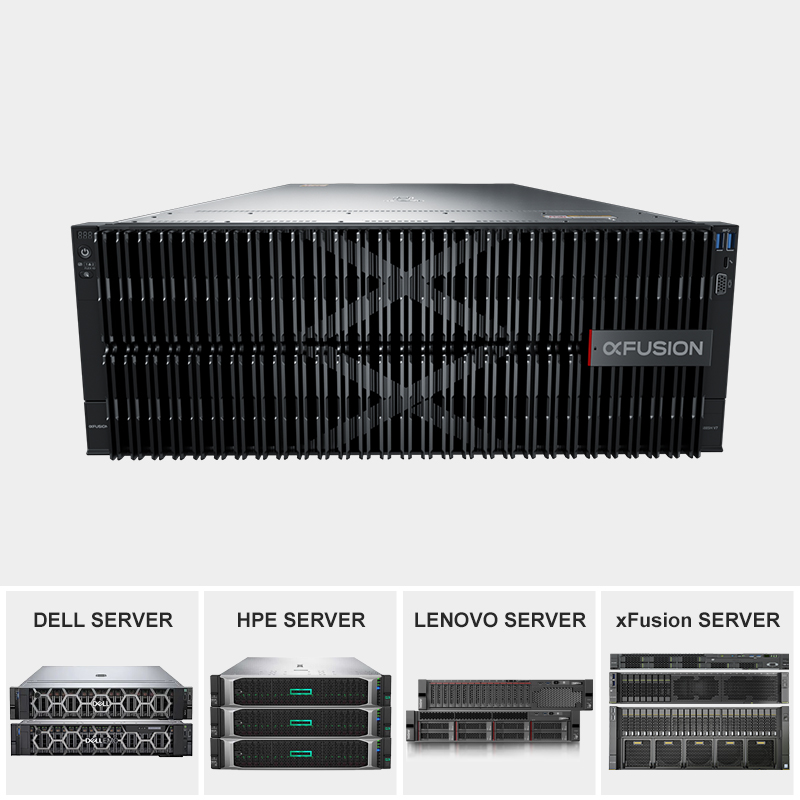

| Server Model | FusionServer 5885H V7 |

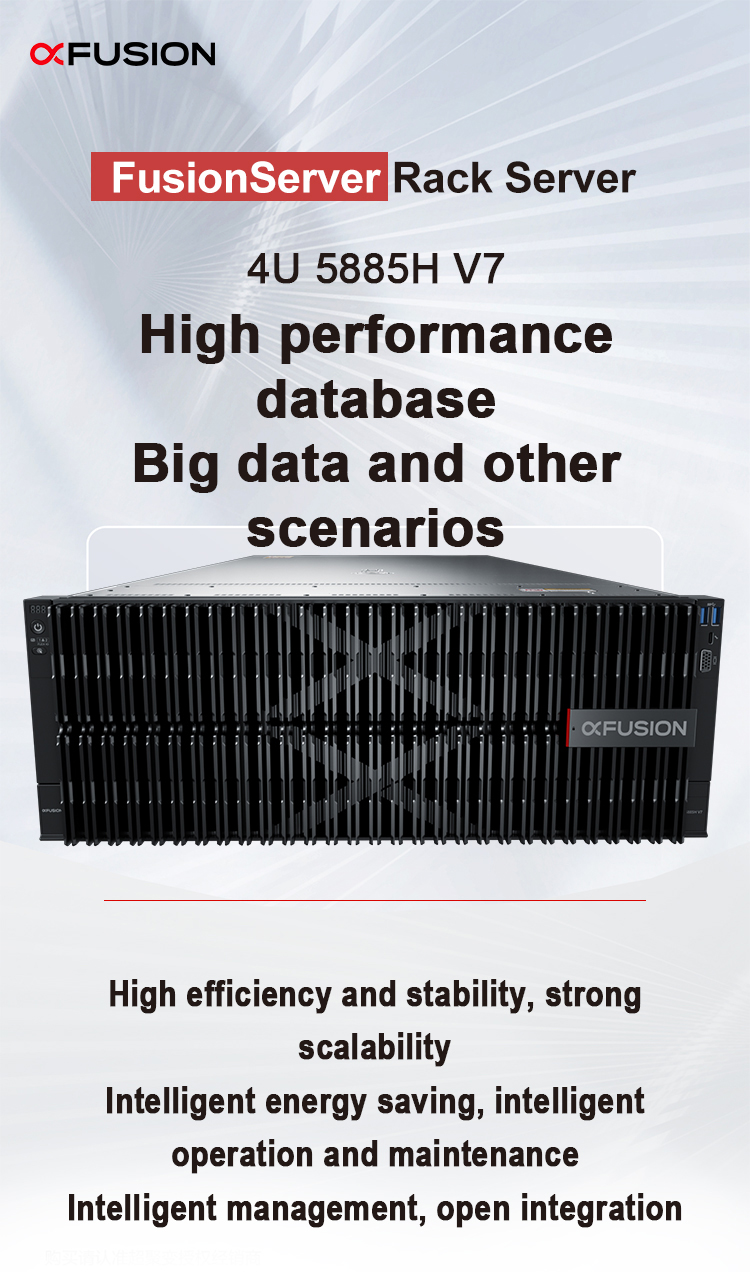

| Form Factor | 4U rack server |

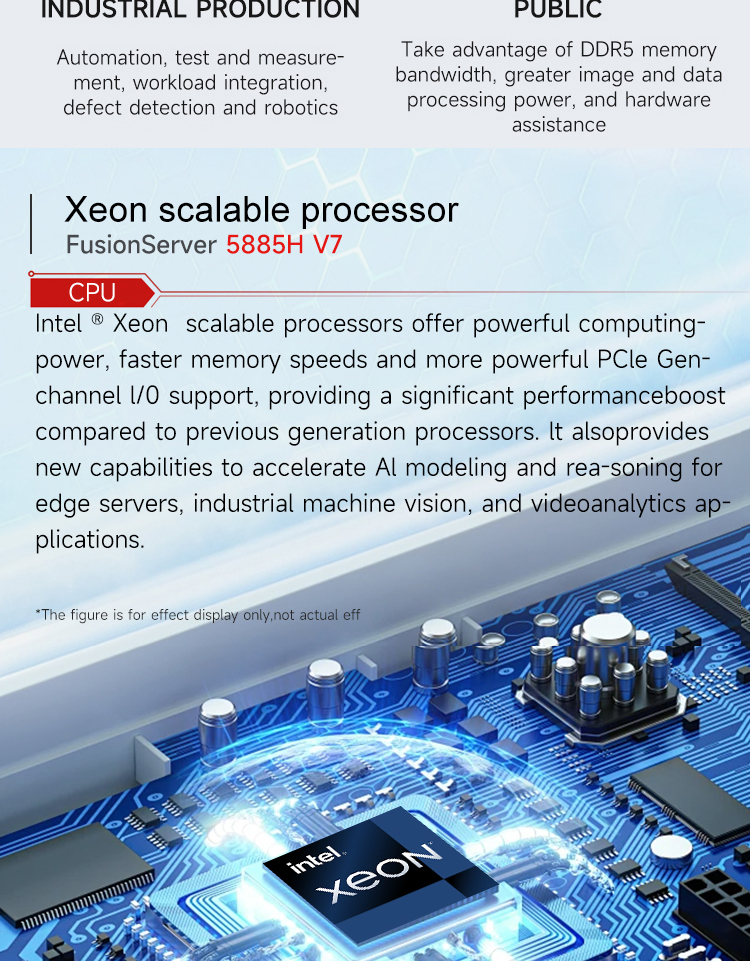

| Processors | 2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Local Storage |

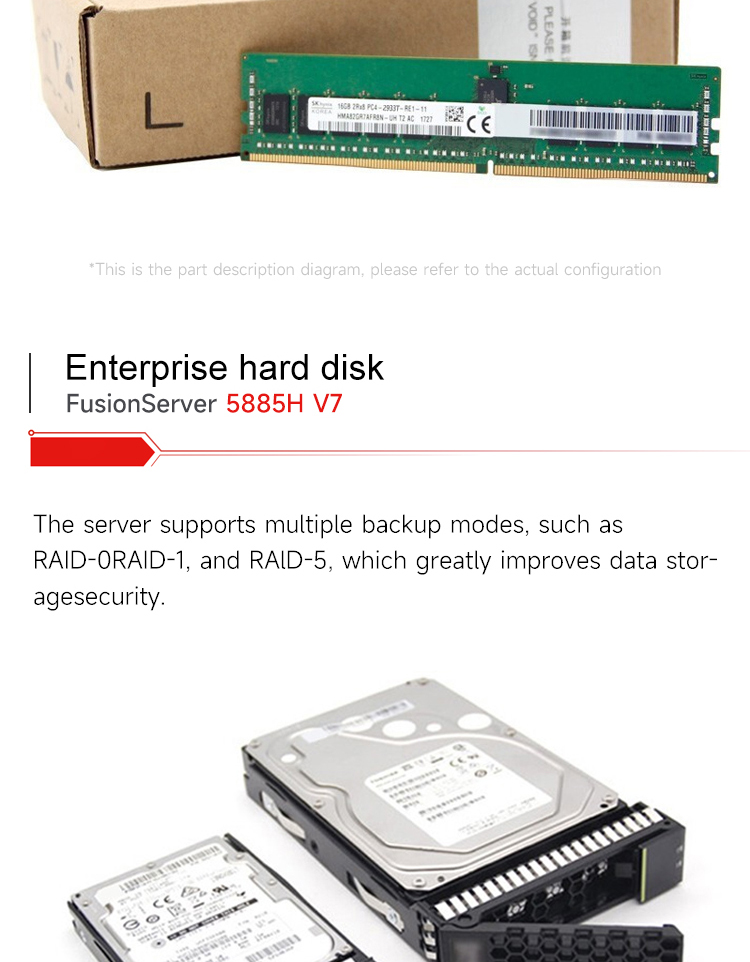

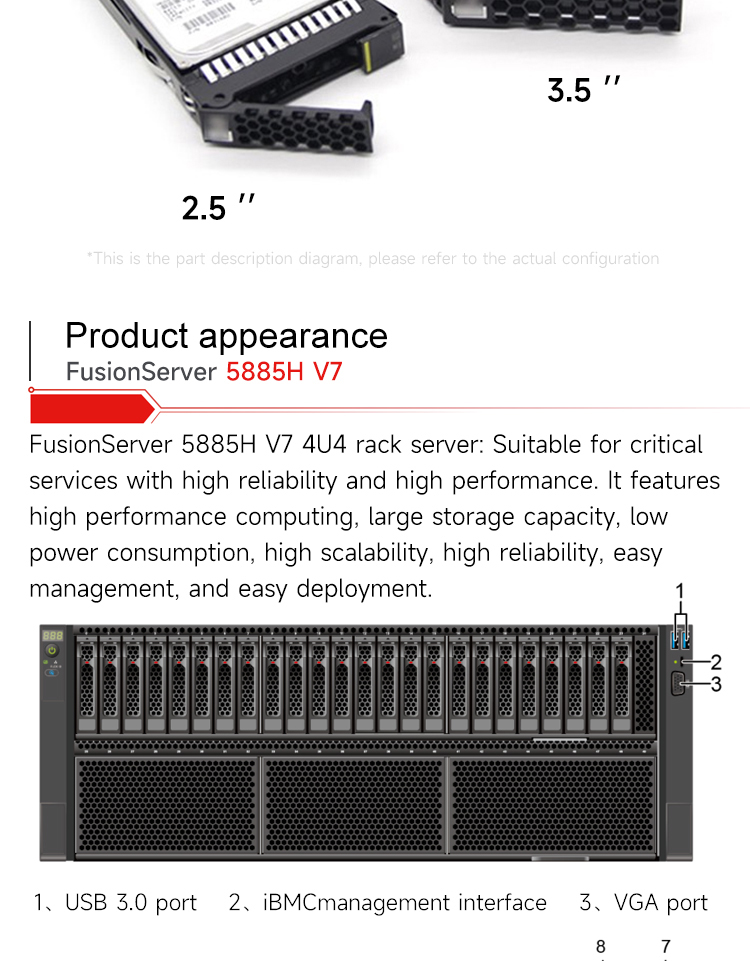

Hot-swappable drive configurations: • 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives • 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs • 24 x front NVMe SSDs • 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs • 36 x front E1.S SSDs • Up to 52 x 2.5″ drives Flash storage: • 2 x M.2 SSDs, supporting hardware RAID |

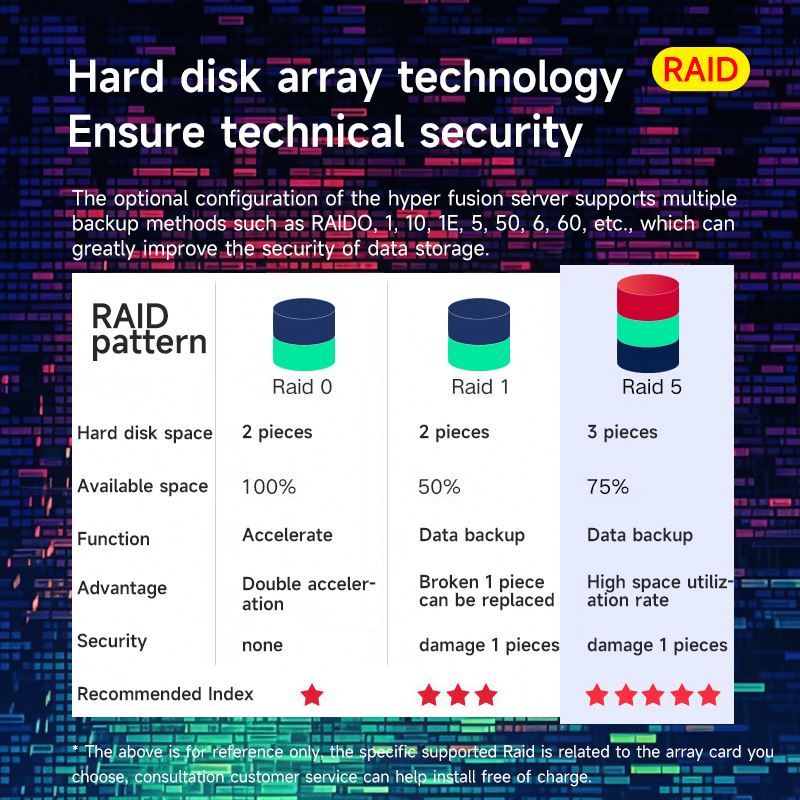

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| PCIe Expansion | Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots |
| GPU Accelerator Card |
• 4 x dual-width GPU cards • 14 x single-width GPU cards |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. |
| Fan Modules | 8 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Security Features | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Operating Temp | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4 |

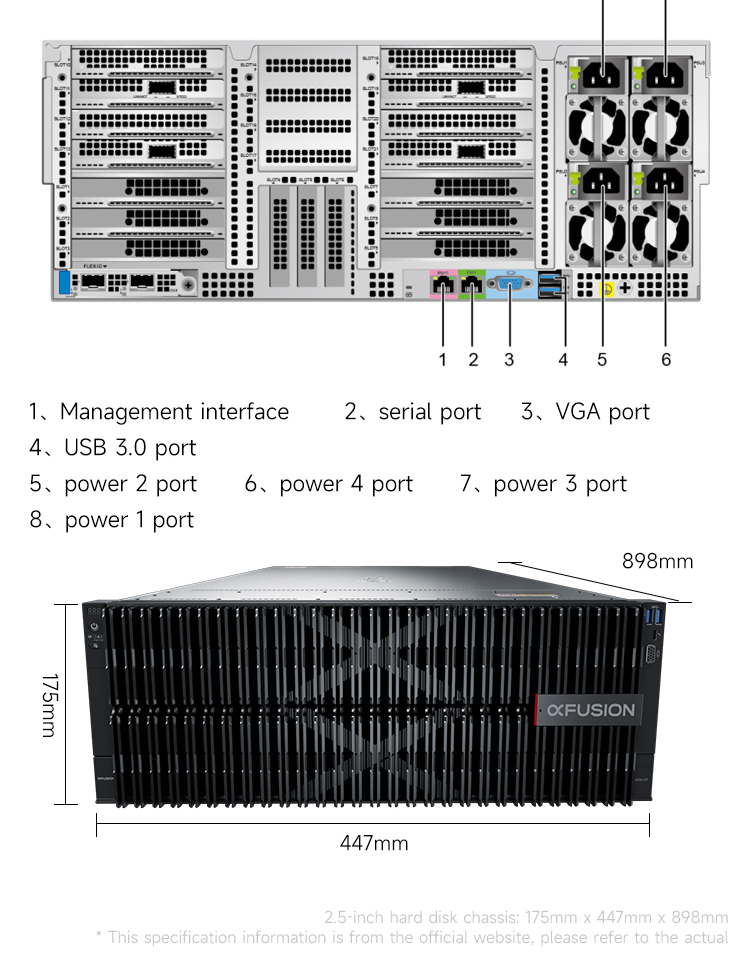

| Dimensions (H x W x D) | Chassis with 2.5″ drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.) |
| Power Supply Units |
4 x hot-swappable PSUs in 2+2 redundancy mode: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W @ 100 V to 127 V AC, 1500 W @ 200 V to 240 V AC, or 192 V to 288 V DC) • 2000 W AC Titanium PSUs (1800 W @ 200 V to 220 V AC, 2000 W @ 200 V to 230 V AC, 2150 W @ 230 V to 240 V AC) • 3000 W AC Titanium PSUs (2500 W @ 200 V to 220 V AC, 2900 W @ 220 V to 230 V AC, 3000 W @ 230 V to 240 V AC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) |
